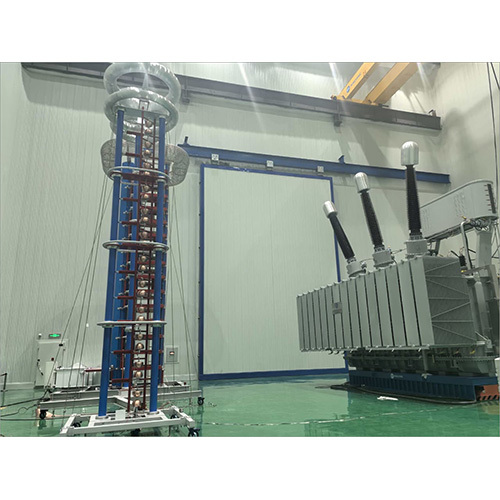

Impulse Generator

Get a Price/Quote

Impulse Generator Specification

Insulation
High-grade epoxy or oil insulation

Poles Number
N/A (Not applicable to impulse generators)

Dimension (L*W*H)
Varies by configuration; typical setup: 4000 mm x 4000 mm x 13000 mm

Protection Class
IP54 or higher

Pressure
Up to 3000 kV impulse voltage

Engine Type
Not applicable (no combustion engine)

Fuel Consumption
N/A (Impulse generator is typically electrically driven, not fuel based)

Product Type
High Voltage Impulse Generator

Output Type
Impulse voltage

Rated Power
Not rated in kW; rated for voltage (up to 3000 kV)

Rated Voltage
Up to 3000 kV

Starting Type
Manual/Electronic control

Rated Frequency
DC/Impulsive (not a standard frequency device)

Power Range
Impulse energy: Up to 300 kJ

Noise Level
< 80 dB during operation

Phase
Single phase, impulse output

Color
Blue/Silver

Weight
Varies by model, typical: 2-15 Tons

Operation Mode
Manual/Remote/Automatic selectable

Discharge Medium
Sparking gaps in dry air or SF6

Accessories
Measuring sphere gaps, control desk, digital measuring instruments

Impulse Waveform Shape
Standard 1.2/50 microseconds lightning impulse

Application
High-voltage equipment testing, insulation testing, transformer and surge arrester testing

Compliance Standard
IEC 60060-1

Safety Features
Interlocked safety barriers, emergency stop switches

Control System
Microprocessor/PLC-based control panel

Charging Voltage Time
< 60 seconds

Cooling Type
Air cooled

Stage Number
3 to 12 stages, configurable

Installation
Indoor laboratory/factory setup

About Impulse Generator

Spotlight your testing needs with our splendid Impulse Generator, proudly designed and manufactured in India. Engineered for affordable excellence, this system provides unparalleled reliability with configurable stages (3 to 12) and delivers a glorious 1.2/50 microseconds lightning impulse waveform, reaching voltages up to 3000 kV. Its microprocessor/PLC-based control panel ensures precise operation, and the interlocked safety barriers provide robust protection. Ideal for high-voltage and insulation testing of transformers, surge arresters, and more, pick yours for superior performance in compliance with IEC 60060-1 standards. Accessories include digital measuring instruments, control desk, and sphere gaps.

Features, Application Method & Plant Use

Our Impulse Generator excels with customizable spark gaps, digital instrumentation, and both remote and automatic operation modes. Application methods include delivering controlled impulse energy for assessing dielectric strength in transformers, cables, and surge arresters. This generator is ideal for laboratory and factory setups, fitting seamlessly into plant installations for quality and routine high-voltage testing. Its air-cooled design and high-grade epoxy or oil insulation ensure long-term, reliable operation in demanding industrial environments.

Payment Terms, Sample, and Certifications

After every order is confirmed, the product is handed over for express shipping with dispatching in 2-4 weeks. Flexible payment terms are supported, including advance and milestone payments, ensuring a smooth procurement experience. Samples are available upon request so customers can verify quality before committing to large-scale orders. Each unit is rigorously tested and certified as per IEC 60060-1 standard, ensuring compliance and reliable performance for your critical applications.

FAQ's of Impulse Generator:

Q: How does the Impulse Generator benefit high-voltage equipment testing?

A: The Impulse Generator delivers precise impulse voltage tests that reveal insulation weaknesses and validate the performance of high-voltage apparatus such as transformers and surge arresters, ensuring their safety and reliability.

Q: What is the process for configuring the generator's stage number and control modes?

A: You can select from 3 to 12 stages based on testing requirements. The unit features manual, remote, and automatic operation modes, easily managed through its advanced microprocessor or PLC-based control panel for enhanced flexibility.

Q: Where can this Impulse Generator be installed and operated?

A: It is designed for indoor use, suitable for laboratories and factory setups. Its compact, robust design allows integration with existing testing facilities, ensuring convenient operation and safety.

Q: What safety and protection features are included in this generator?

A: The generator is equipped with interlocked safety barriers and emergency stop switches to safeguard operators and laboratory personnel during high-voltage testing procedures.

Q: When can I expect delivery and is express shipping available?

A: Once your order is confirmed, the product is handed over for express shipping, with typical dispatch timelines ranging from 2 to 4 weeks, ensuring you receive your equipment promptly.
