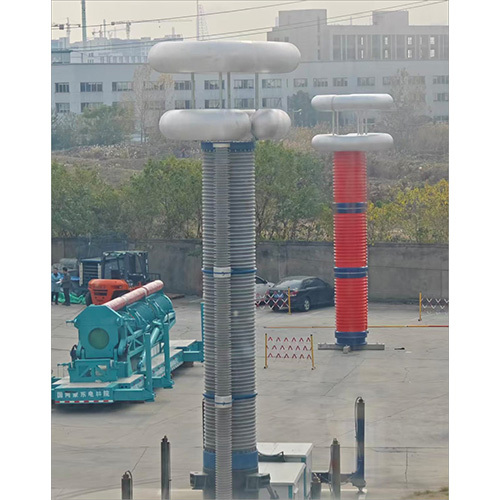

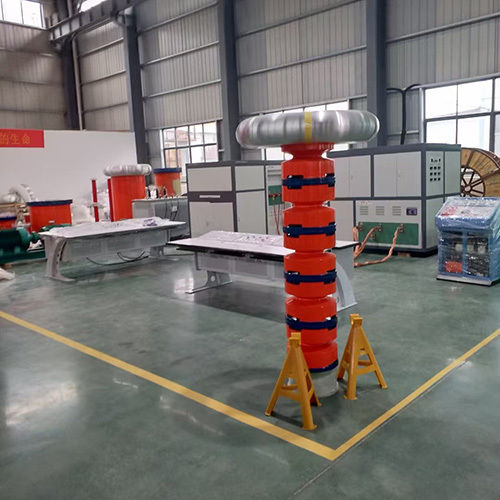

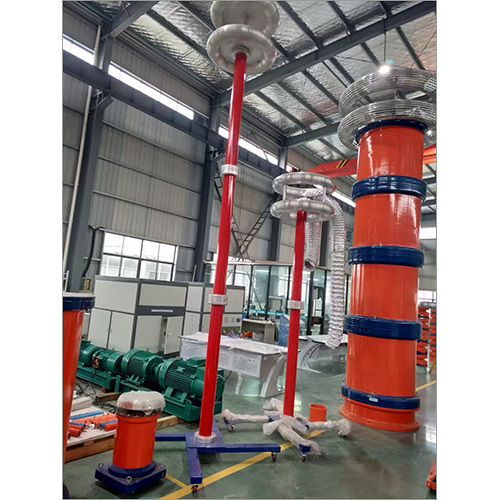

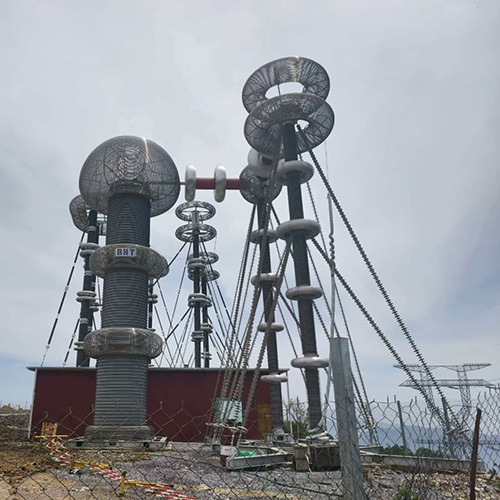

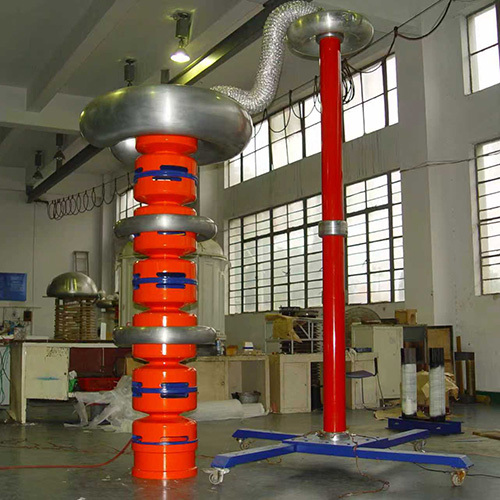

High Voltage Tester

Get a Price/Quote

High Voltage Tester Specification

Accuracy
1% of reading

Batteries Type
Not applicable - line powered

Resistant Feature
Weather-resistant, corrosion-resistant, UV-resistant

Usage & Applications
For testing insulation and dielectric strength of electrical power equipment, transformers, cables, and switchgear

Pressure
Atmospheric (standard operation)

Product Type
High Voltage Tester

Material
Galvanized steel, composite polymers, silicone rubber insulation

Measuring Voltage Range
Up to 1500 kV AC / DC (customized range options available)

Operating Temperature
-20C to +55C

Frequency (MHz)
0.01 MHz to 3 MHz

Insulation Box
Yes, high-grade polyester or composite insulation

Protection System
Integrated safety system with grounding and over-voltage protection

Size
Custom-designed as per test requirements, typically large-scale

Color
Metallic Grey / Silver

Dimension (L*W*H)
Approx. 3500 mm x 2000 mm x 5000 mm (custom as per model)

Weight
Approx. 7000 kg (dependent on configuration)

Test Capacity
From 100 kVA to 5000 kVA (based on site and model)

Cooling System
Air or oil cooling

Display Type
Digital voltage and current display

Voltage Output Type
AC/DC or pulsed output, selectable as per test requirement

Installation
Outdoor/Indoor, with dedicated foundation requirements

Application Field
Power utilities, research labs, and industrial manufacturing plants

Power Supply
3-phase, 400/415V, 50/60 Hz

Control Panel
Remote operation with touchscreen interface and emergency stop

Environmental Protection
IP54/IP65 protection available as per demand

Safety Interlocks
Automatic shutdown and alarms for fault/overload

About High Voltage Tester

Jump on the innovation wave with our top-rated High Voltage Tester, a sterling solution for your electrical testing needs. Designed for heroic performance, this glorious machine offers selectable AC, DC, or pulsed output, digital readouts, and remote touchscreen control featuring emergency stops and full safety interlocks. Engineered for utility giants, research heroes, and industrial champions, it boasts robust, IP-protected construction, customizable sizing, and precision accuracy up to 1%. Grab yours now-ensure uncompromised safety and reliability in transformer, cable, and switchgear testing anywhere power matters!

Tailored Excellence for Heroic Electrical Testing

The High Voltage Tester is used for rigorous insulation and dielectric strength testing on transformers, power cables, and switchgear. Its sterling construction adapts to both indoor and outdoor environments, thanks to air or oil cooling and robust weather-resistant materials. This unit serves as a reliable solution for research labs and power utility fields, providing thorough, accurate diagnostics wherever voltage endurance is critical. It ensures only flawless equipment enters your grid or assembly lines.

Certified Quality for Domestic and Global Markets

Our High Voltage Tester sets the gold standard for both domestic and export markets across India and beyond. Certified to meet international safety and performance benchmarks, every unit is dispatched swiftly upon order completion. Samples are available for hands-on evaluation, ensuring you receive optimal fit. With a reputation for reliability and on-time delivery, we stand as a trusted exporter, manufacturer, service provider, and supplier to key industries worldwide.

FAQ's of High Voltage Tester:

Q: How does the High Voltage Tester ensure operational safety during use?

A: The High Voltage Tester features integrated safety interlocks, an emergency stop function, and automatic shutdown with alarms for faults or overloads, providing exceptional operator safety.

Q: What types of voltage outputs can this tester deliver?

A: It can deliver selectable AC, DC, or pulsed voltage outputs, allowing you to adapt testing parameters for your specific applications and requirements.

Q: Where can the High Voltage Tester be installed?

A: This tester is suitable for both indoor and outdoor installations and requires a dedicated foundation. Its weather-resistant and corrosion-resistant build supports versatile placement options.

Q: When should you use this tester in your operation?

A: Use the High Voltage Tester whenever you need to evaluate the insulation or dielectric strength of electrical power equipment, including transformers, cables, or switchgear, to ensure safety and compliance.

Q: What is the process for ordering and receiving a sample unit?

A: Interested buyers can request a sample for evaluation. Upon order completion, testers are dispatched efficiently, ensuring prompt delivery both domestically and to international destinations.

Q: What are the benefits of digital voltage and current display in this equipment?

A: The digital display provides accurate, real-time voltage and current readings up to 1% accuracy, improving test precision and decision-making for maintenance and approvals.
